WisperFlo

The WisperFlo system is our flagship packaged pump product line.

wisperflo-quantumflo

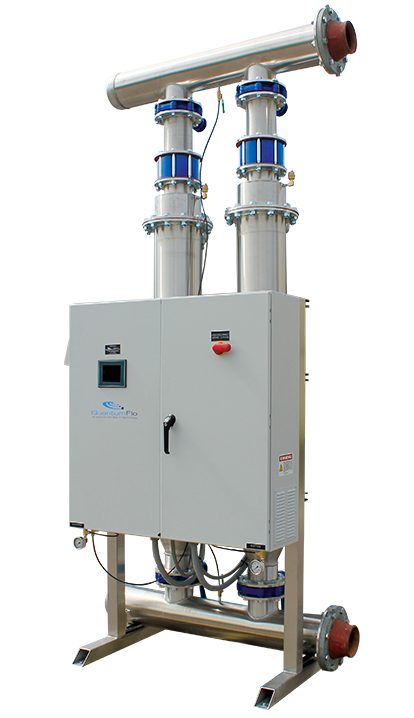

The WisperFlo Series is a highly compact, customizable package designed for HIGH FLOW – HIGH BOOST applications. It features NSF 61 Rated, 304 S.S. multi-stage, submersible turbine pumps with 304 stainless steel casing, diffusers and impeller. All controls are protected within a NEMA 3R forced-air ventilated enclosure with inlet filter and NEMA 4X active incoming surge suppressor with LED indicator.

All systems come complete with our award-winning variable speed pressure control software iQFlo, with GreenFlo ASHRAE/ANSI/IES Standard 90.1 compliant low-flow energy optimization algorithm.

Explore the standard benefits and options our WisperFlo system has to offer:

  • iQFlo (Award-Winning) Pressure Control Software with Integral Auto-Tuning
  • 5 Year Limited Warranty on the Entire 3rd Party Certified System
  • 304 Stainless Steel, Square Tube Space Frame and 304 Stainless Steel Headers
  • Standard 100,000 AIC Controller Rating at Incoming Disconnect
  • NSF 61 and NSF 372 System Compliance (N-5946/7626 IAPMO)
  • ANSI/ASHRAE/IES Standard 90.1 Energy Compliance Via Integral GreenFlo™ logic algorithm – No Remote Sensors!
  • 5.7” TFT Full Color Touch Screen Interface with Integral Troubleshooting, Maintenance and Downloadable Trend Charts
  • Ultra-Quiet Submersible Pumps Mounted within the Fluid, which Leverage the Sound-Attenuating Properties of Water
  • Temperature Sensors within Each Canister Monitor the Temperature Limit on Internal Submersible Motors
  • Simplex, Duplex, Triplex and Quadraplex Systems Available for a Multitude of Voltages and Horsepower in the Horizontal and Vertical Mounting Configurations.

The WisperFlo Submersible Multi-Stage Series system defines QuantumFlo's spirit of innovation and is ideal for many industry applications.

Discover iQFlo 2.0

The award-winning technology has been updated to create the industry’s ONLY Booster Operating System Solution (B.O.S.S.).

Learn More

Calculate with calQflo…

Our online pump sizing tool will match you with the right specs to best fit your next project.
